The Complete Guide to Caravan TVs and 12V Setups

A caravan TV is more than just a screen. It’s a way to relax after a long drive, catch the news from hundreds of kilometres away, or keep kids occupied on wet afternoons. But not all TVs are equal, and choosing the right caravan TV depends on your power setup, the size of your van, and how you like to travel. This guide explains everything you need to know about 12V TVs, from power efficiency and picture quality to antennas, smart features, and real-world runtime examples.

Family watching TV inside caravan

Why Caravan TVs Are Different

At first glance, a caravan TV looks just like the one in your lounge room. The difference is in how it’s built. A 12V caravan TV is designed for life on the road: it handles vibration, fluctuating voltages, and compact spaces. They’re lightweight, power-efficient, and designed to connect straight to your van’s electrical system without an inverter.

12V Caravan TVs vs Household TVs

Technically, you can use a household TV in a caravan if you’re always plugged into 240V mains at caravan parks. But for free campers, it’s not efficient. Running a normal TV through an inverter wastes energy and puts strain on your batteries. A purpose-built tv for 12v setups is the smarter option, consuming far less power and avoiding inverter losses.

Power Use and Efficiency

Power is a balancing act in any van. Lights, fridges, pumps, and chargers all compete for the same battery supply. A good 12v tv draws only 2–6 amps per hour depending on size, meaning several hours of viewing each night without a huge dent in your capacity. Dual-voltage models add flexibility, switching between 12V battery power and 240V mains when available.

Picture Quality and Viewing Comfort

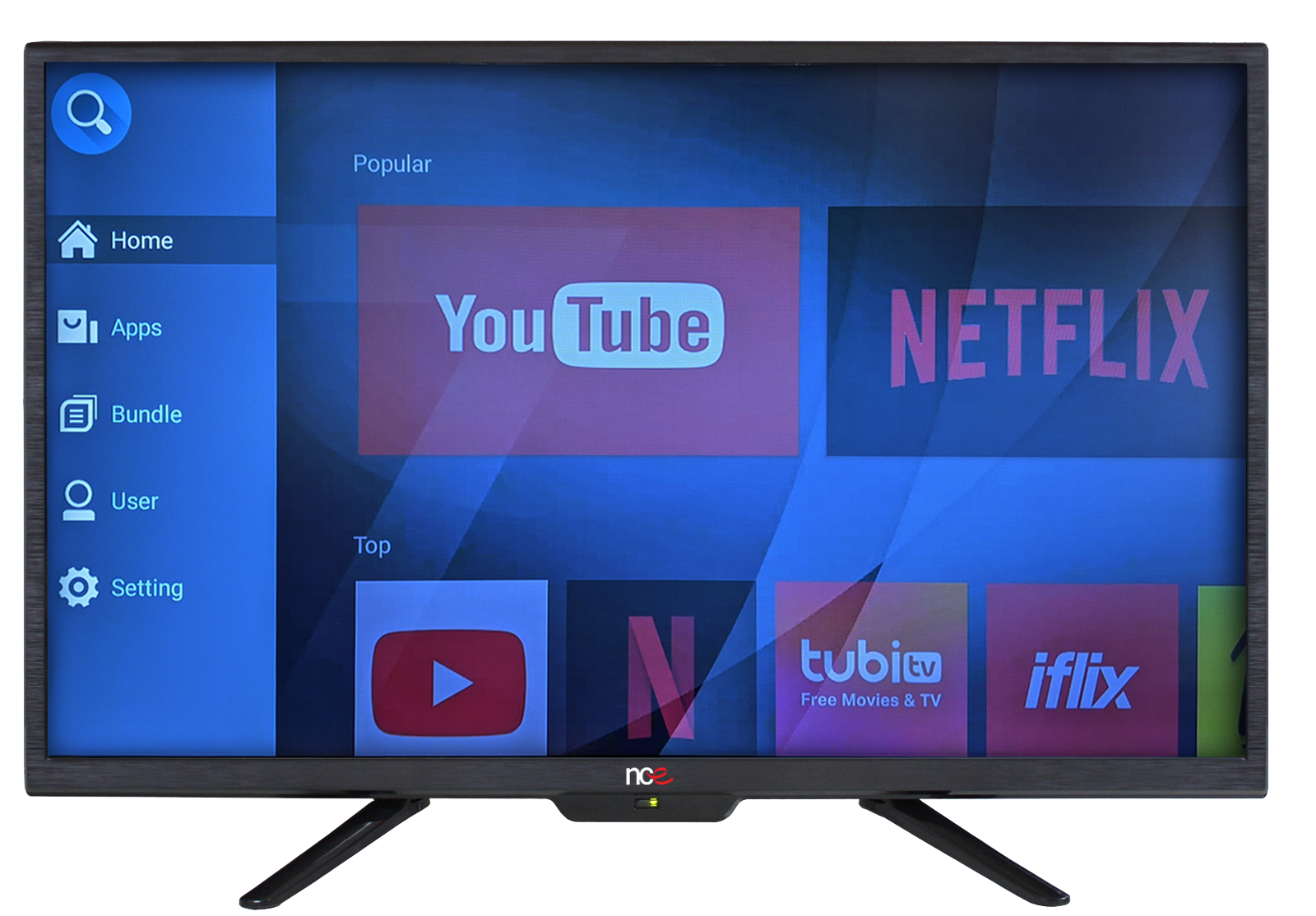

Caravan TVs now come in HD and Full HD. Smaller screens like 24″ look fine in 720p, while 28″ and 32″ models benefit from 1080p Full HD. Anti-glare screens and higher brightness ratings are helpful under Australian sunlight. Wide viewing angles make family viewing easier inside compact vans. For streaming fans, smart models like the NCE 32″ Smart Google TV offer built-in apps.

Caravan TV with inverter and media setup

Do You Need an Antenna?

Many travellers assume streaming replaces antennas, but mobile coverage quickly drops once you leave urban areas. A caravan TV antenna ensures free-to-air TV anywhere a signal is available. Directional antennas offer stronger reception but need aiming, while omnidirectional antennas are plug-and-play but weaker in remote regions. For outback travellers, satellite TV (VAST) is often the only option. Most campers carry both an antenna and a streaming stick for flexibility.

Caravan TV antenna mounted on RV roof

Choosing the Right Size

Bigger isn’t always better. Because caravan spaces are smaller, sitting distance is closer than at home. - 24″ 12V caravan TV: suits compact vans or couples. - 28″ caravan tv for mid-size vans. - 32″ smart 12V caravan tv: ideal for families and large vans. Always check weight and use RV-specific mounts to handle vibration.

Smart Features and Connectivity

Caravan TVs have caught up with lounge rooms. Many offer Wi-Fi, streaming apps, and Bluetooth audio for soundbars. Others still include DVD players or USB ports, perfect for kids’ movies in no-signal areas.

Installation and Setup

Use proper RV brackets that lock for travel. Swivel arms allow flexible viewing, while fixed mounts suit rough roads. Always wire to regulated 12V outlets. If you’re unsure, have an auto-electrician fit your TV to avoid costly electrical damage.

Real-World Example: Runtime on a 100Ah Battery

Say you run an NCE 24″ 12V TV that draws 3 amps. On a 100Ah lithium battery (with ~90Ah usable), you’ll get about 30 hours of total viewing — 3 hours per night for 10 nights. On a 100Ah AGM (with ~50Ah usable), runtime drops to around 16 hours. Add solar or a DC-DC charger and you can effectively run a caravan tv indefinitely off-grid.

Comparison Table: Caravan TVs Available at Home & RV

Screen Size & Model Best For Typical Power Draw Runtime on 100Ah Lithium Runtime on 100Ah AGM
NCE 24″ LED LCD TV 12VDC Compact vans, couples ~3A per hour ~30 hours (3h/night × 10 nights) ~16 hours (2h/night × 8 nights)
NCE 28″ Smart Google TV Mid-size vans, small families ~4A per hour ~22 hours (2h/night × 11 nights) ~12 hours (1.5h/night × 8 nights)
NCE 32″ Smart Google TV Large vans, families ~6A per hour ~15 hours (2h/night × 7 nights) ~8 hours (2h/night × 4 nights)

Smaller 24″ sets can last weeks on a leisure battery, while larger smart TVs need solar or DC-DC charging to keep up — but they deliver a theatre-like feel inside your caravan.

Which Caravan TV Is Best for You?

If you’re a couple in a compact van, the 24″ 12v caravan tv is efficient and practical. If you travel as a family or enjoy streaming, the 28″ or 32″ tv for 12v setups make sense. Browse the full range of caravan tvs at Home & RV to find the right fit.

FAQ

Do you need a special TV for a caravan?
Yes. Household TVs aren’t designed for vibration or direct 12V use. A dedicated 12v tv is built for efficiency and durability in mobile setups.
How long will a 12V TV run on a leisure battery?
A 24″ 12V TV draws around 3A. On a 100Ah lithium battery you’ll get about 30 hours of viewing, or 16 hours with AGM.
Can I stream Netflix and YouTube on a caravan TV?
Yes. Smart 12v caravan tv models like the 32″ Google TV include built-in apps. When reception is poor, DVDs or USBs work as backup.
Why won’t my caravan TV pick up channels?
Usually it’s poor antenna setup or weak coverage. A proper caravan antenna or satellite kit solves this.
