SunPower Maxeon 3 395W Solar Panel Deep Dive, What Makes It Different
.png)
Most 395W solar panels are not built the same. Efficiency is only part of the story. The SunPower Maxeon 3 395W is designed around a different cell architecture, with premium efficiency and strong real-world performance in heat, low light and partial shading.
This guide breaks down what actually makes the SunPower Maxeon 3 395W different, who it suits, and what to compare if you are choosing panels for a residential rooftop, commercial installation, grid-connected system or larger project. If you are researching commercial solar panels or planning solar power for commercial sites, the same performance factors apply, efficiency, heat behaviour and long-term durability.
Key specifications at a glance
Performance
- Nominal power, 395W
- Module efficiency, 22.3%
- Temperature coefficient, -0.27% per °C
- Cell platform, 104 Monocrystalline Maxeon Gen3
Ratings and system design
- Maximum system voltage, 1000V
- Wind load rating, 2400Pa (front and back)
- Snow load rating, 5400Pa (front)
- Impact resistance, 25mm hail at 23m/s
What makes Maxeon 3 different from standard panels
Maxeon cell architecture
Many standard panels use front-contact busbars that sit on the face of the cell. The Maxeon 3 platform uses a different architecture, with a rear-contact design and a solid copper foundation. The goal is to reduce electrical resistance and support long-term structural integrity.
In practical terms, a stronger architecture matters because panels live through decades of thermal cycling, vibration, wind load and handling. Micro-cracking and fatigue can reduce output over time in conventional modules, especially in harsher conditions.
Why 104 cells matters
The 104-cell format is part of the panel’s electrical design. It operates at higher voltage characteristics compared to many standard modules, which can influence inverter pairing and string design. For installers and designers, it is a reminder that wattage is not the only number that matters.
Always confirm Voc and Vmpp values against your inverter’s string voltage limits and your local temperature conditions during design.
Understanding 22.3% efficiency, what it actually means
Module efficiency is a measure of how effectively the panel converts sunlight into electricity. At 22.3%, the Maxeon 3 395W sits above most typical 395W panels, which often land closer to 18% to 20%.
Where this becomes meaningful is in space-constrained installations. If you have limited roof area on a home, a commercial building, or a project with design constraints, higher watts per square metre can increase total system output without expanding the footprint. This is one of the reasons higher-efficiency commercial solar panels are often specified for warehouses, offices and rooftops where usable space is limited.

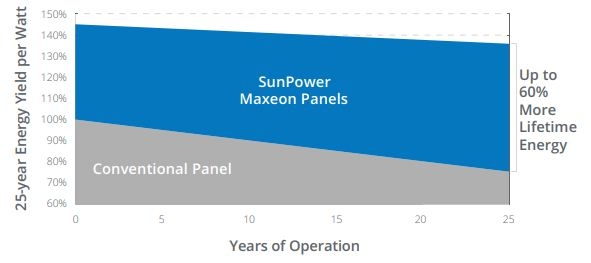

Temperature performance in Australian conditions
Solar panels lose output as temperature rises. The Maxeon 3 395W uses a power temperature coefficient of -0.27% per °C, which is stronger than many standard panels that commonly sit around -0.34% to -0.40%.
In real-world Australian installs, roof temperatures can climb far above 25°C. A lower temperature coefficient means the panel retains more of its rated output as conditions heat up, which can help total daily yield during peak summer periods. For solar power for commercial sites, where large arrays operate through sustained heat, temperature behaviour can have a real impact on annual production.
.jpg)

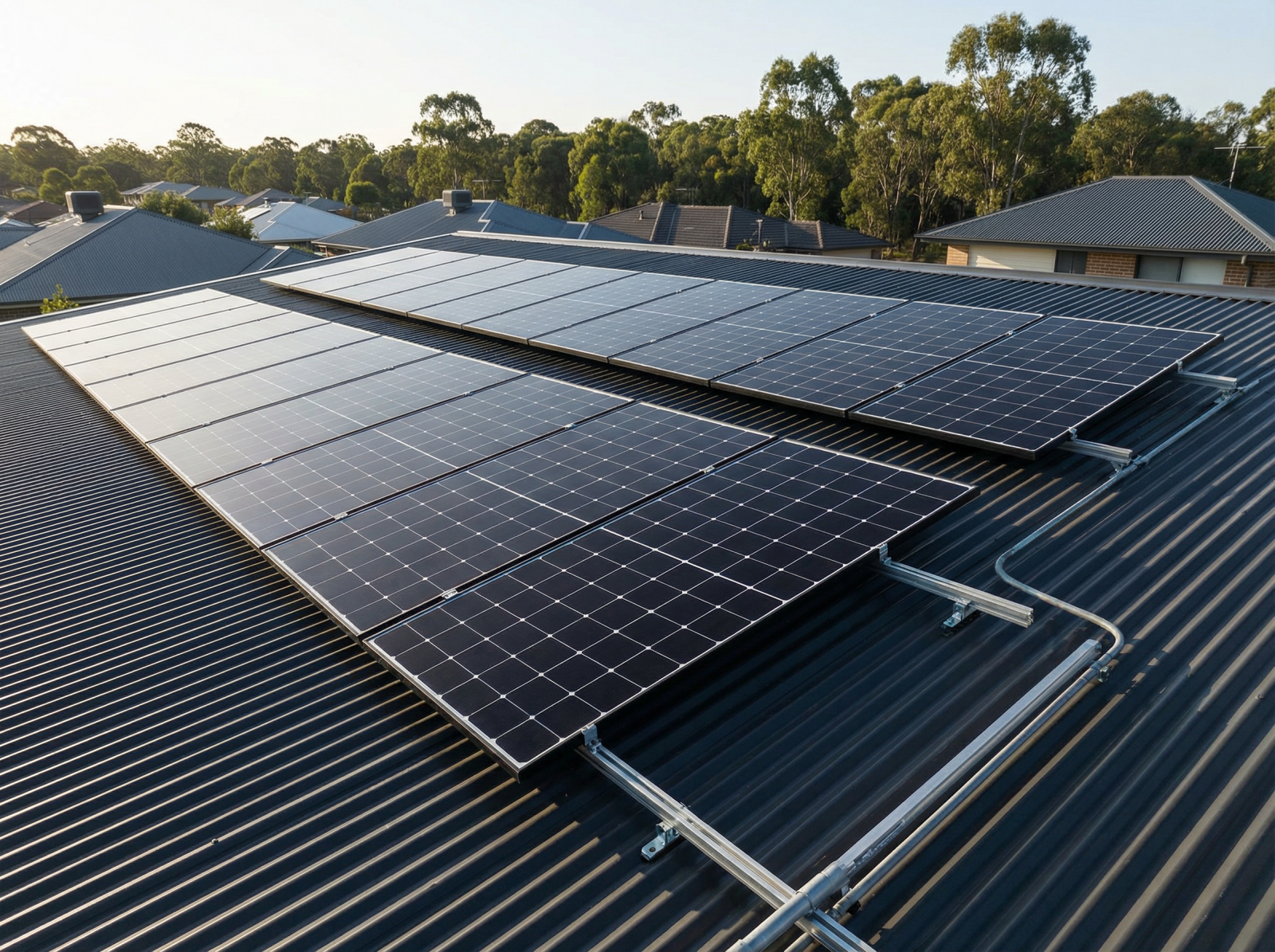

Durability and mechanical strength ratings
Mechanical ratings are not just for extreme climates. Panels are transported, handled, mounted and exposed to wind uplift, thermal movement and weather. The Maxeon 3 395W is rated for wind loads up to 2400Pa (front and back), snow loads up to 5400Pa (front), and is tested for hail impact resistance (25mm hail at 23m/s).
These specifications make it suitable for a wide range of installs, including residential rooftops, commercial buildings and ground-mounted arrays where long-term structural integrity matters.
Electrical specifications explained in plain English
The electrical values below influence string sizing, inverter pairing and system safety design. If you are designing a system, these numbers matter as much as the headline wattage.
Core electrical values
- Vmpp, 65.4V
- Impp, 6.04A
- Voc, 75.6V
- Isc, 6.57A
System design constraints
- Maximum system voltage, 1000V
- Maximum series fuse, 20A
- Bypass diodes, 3
Where the Maxeon 3 395W makes sense
- Residential rooftops where space efficiency matters
- Commercial installations where output per square metre is a priority
- Grid-connected systems and larger arrays
- Ground-mounted arrays and energy projects
- Off-grid and hybrid battery-backed systems
If you are selecting panels for a system design where roof area is limited, heat performance is a concern, or you want premium output characteristics, Maxeon 3 is typically evaluated as a premium choice. This is the same logic many buyers apply when comparing commercial solar panels for offices, factories and industrial rooftops.

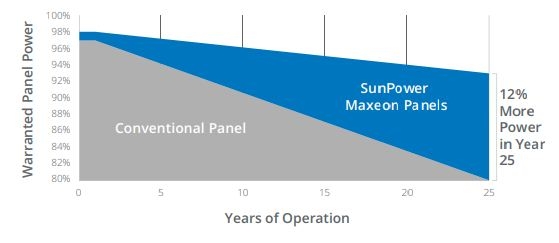

Maxeon 3 395W vs typical 395W panels
.jpg)
| Feature | Maxeon 3 395W | Typical 395W panel |
|---|---|---|
| Efficiency | 22.3% | 18–20% |
| Temperature coefficient | -0.27% per °C | -0.34% to -0.40% |
| Cell design | Rear-contact, copper-backed | Front-contact PERC |
| Mechanical ratings | 2400Pa wind, 5400Pa snow | Varies by brand and model |
| Ideal buyer | Performance-focused residential and commercial installs | Budget and standard installs |
Who should consider this panel
The Maxeon 3 395W is usually considered when performance per square metre, stronger heat behaviour, premium build quality and long-term output characteristics are key decision drivers.
If your primary goal is lowest upfront cost, a standard panel may be a better match. If your goal is maximising output from limited roof space or specifying premium modules for a commercial project, Maxeon 3 is typically shortlisted.
Shop SunPower Maxeon Solar Panels
FAQs
Which type of solar panel is best for commercial use?
For commercial solar panels, high-efficiency monocrystalline modules are typically preferred, especially when roof space is limited or performance in heat matters. Panels with strong temperature behaviour and proven long-term construction are often specified for solar power for commercial buildings to maximise annual yield.
What is the cost of commercial solar panels?
Commercial solar panel cost varies based on system size, roof type, engineering requirements, inverter selection and installation labour. Many commercial solar installations are priced as a total system cost per kW installed, and premium panels may cost more upfront but can deliver stronger performance over time.
What is the 20% rule for solar?
The 20% rule commonly refers to designing a solar array where total panel capacity can exceed inverter capacity by around 10–20%. In commercial solar design, this can help optimise inverter loading through more hours of the day, improving energy harvest under real conditions.
What is the difference between commercial and residential solar panels?
Commercial and residential solar panels can use similar cell technology, but commercial systems are usually larger, may run higher system voltages, and are engineered around long strings, rooftop layout and operational performance. Commercial solar panels are typically selected with a focus on output per square metre, heat behaviour and durability for solar power for commercial buildings.
