Smith's Portable BBQ Slides [Length: 500mm]

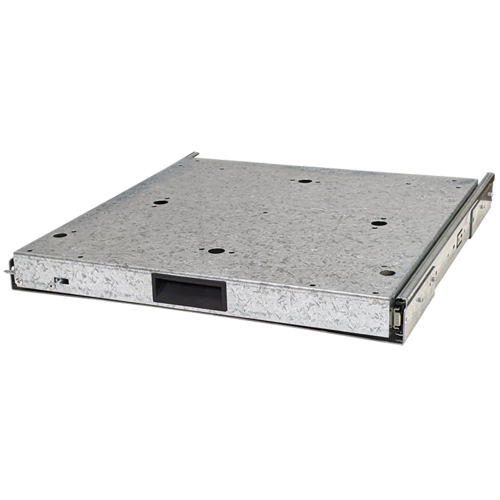

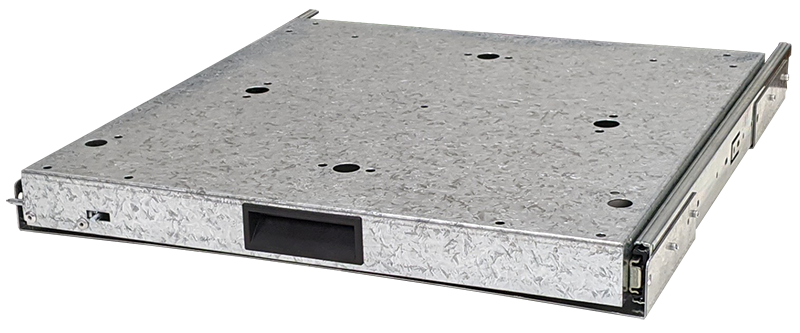

500mm Slide System

• Made from Galvanised metal

• Weight loading: 45kg

• Single lock in position – In

• The BBQ can be mounted “Front to Rear” or“Sideways”

• Maximum loading: 45kg

• Dimensions (L x W x H): 500 x 500 x 55 mm

• Weight: 5.9kg

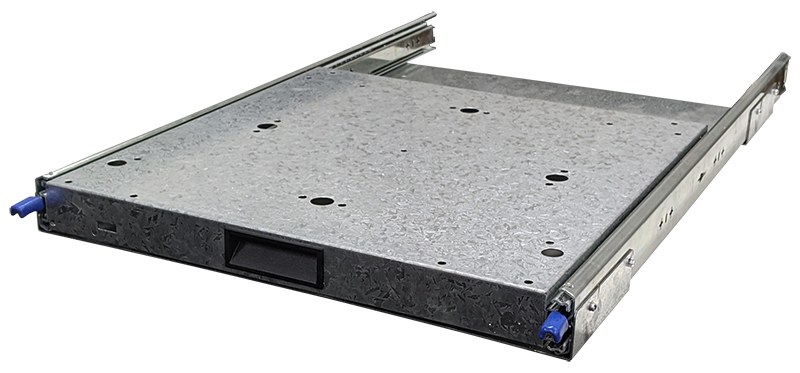

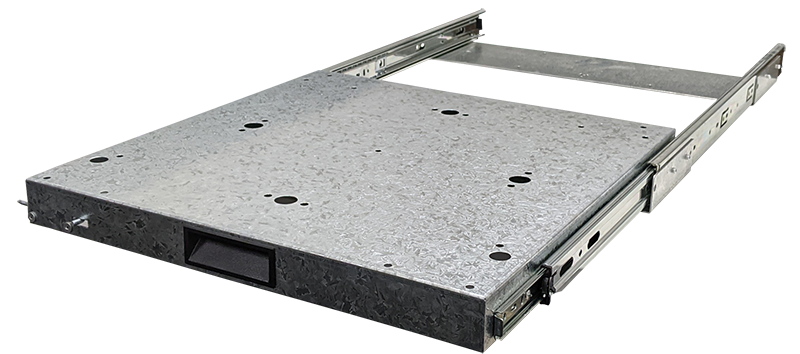

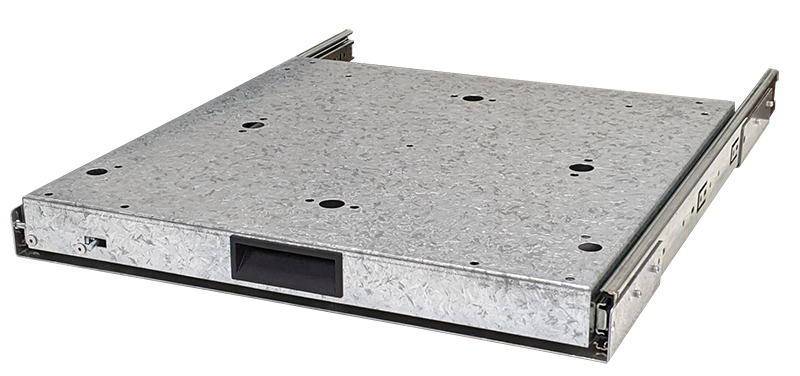

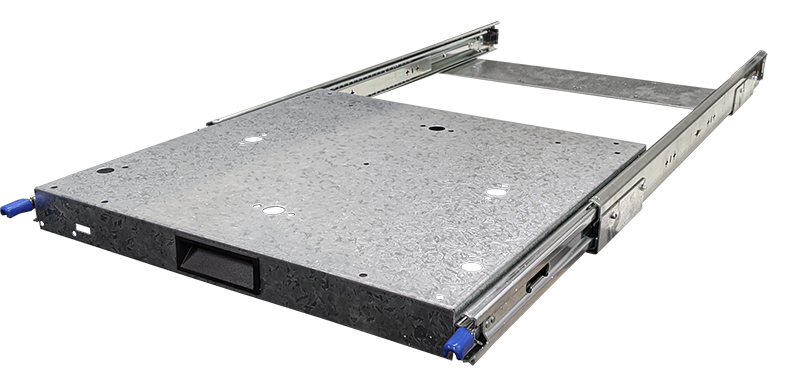

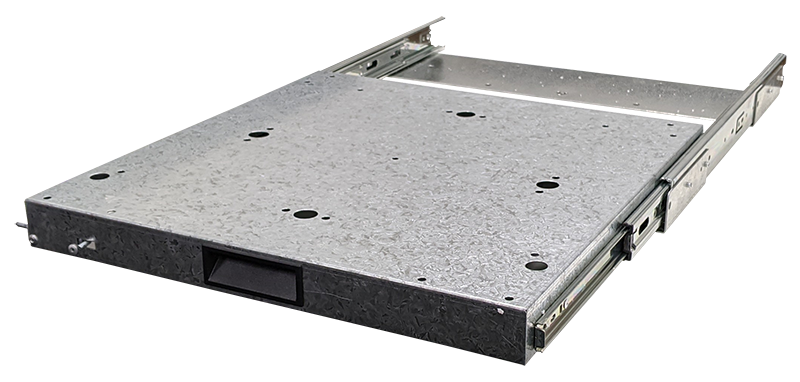

600mm Slide System

• Made from Galvanised metal

• Weight loading: 45kg

• Single lock in position – In

• The BBQ can be mounted “Front to Rear” or“Sideways”

• Maximum loading: 45kg

• Dimensions (L x W x H): 600 x 500 x 55 mm

• Weight: 6.2kg

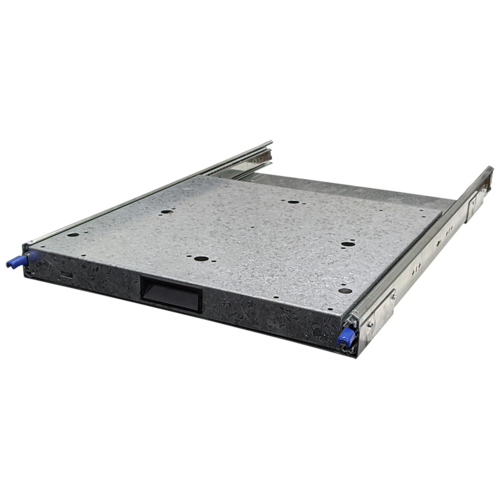

800mm Slide System

• Made from Galvanised metal

• Weight loading: 110kg

• 3 Lock in positions: In/Mid-way/Out

• The BBQ can be mounted “Front to Rear” or“Sideways”

• Maximum loading: 110kg

• Dimensions (L x W x H): 800 x 500 x 55 mm

• Weight: 8.9kg

*The BBQ hood in the open position may hit on the caravan side if mounted “Front to Rear” on 500mm Slide.
