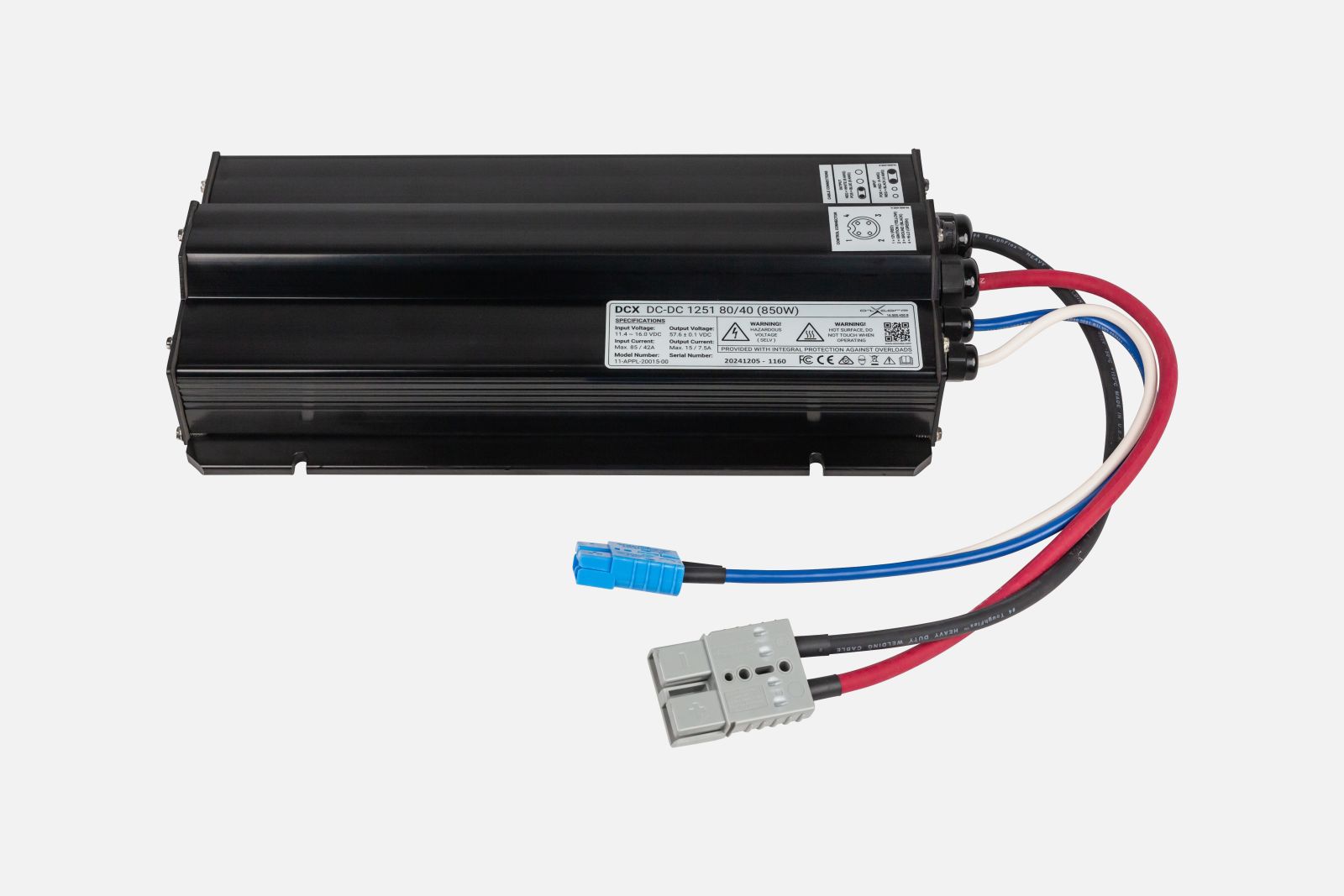

Reliable DC/DC charging for the DCX48V battery system, suited to touring, off-grid setups, and day-to-day vehicle use. Compact, efficient, and engineered to handle harsh conditions so your power system stays topped up on the move.
Fast charging that suits real touringKeep your DCX48V battery system charging while you drive, with high-powered performance that supports rapid charging for modern touring setups. Ideal for campers, 4WD builds, and RVs where dependable charging matters between stops. |
|
|
Wide voltage range, easy to integrateA broad 12–58V input range suits a variety of vehicle and auxiliary systems, giving you flexibility across different builds and battery setups. Fully isolated operation helps protect sensitive electronics and supports cleaner system design. |
Rugged protection for harsh environmentsMil-spec, fully potted construction helps resist shock and vibration, plus flame resistant materials for tougher touring conditions. IP67 rating means it is sealed against dust ingress and can handle full submersion, suited to wet, dirty, and high-use installs. |
|
|
Efficient operation with built-in safety>90% efficiency helps reduce wasted energy and heat, keeping your charging system running cleaner and more reliably. Auto SELV range adds another layer of safety for vehicle and auxiliary power setups. |
| Input voltage range | 12–58V |
| Isolation | Fully isolated |
| Efficiency | >90% |
| Ingress protection | IP67 (fully submersible) |

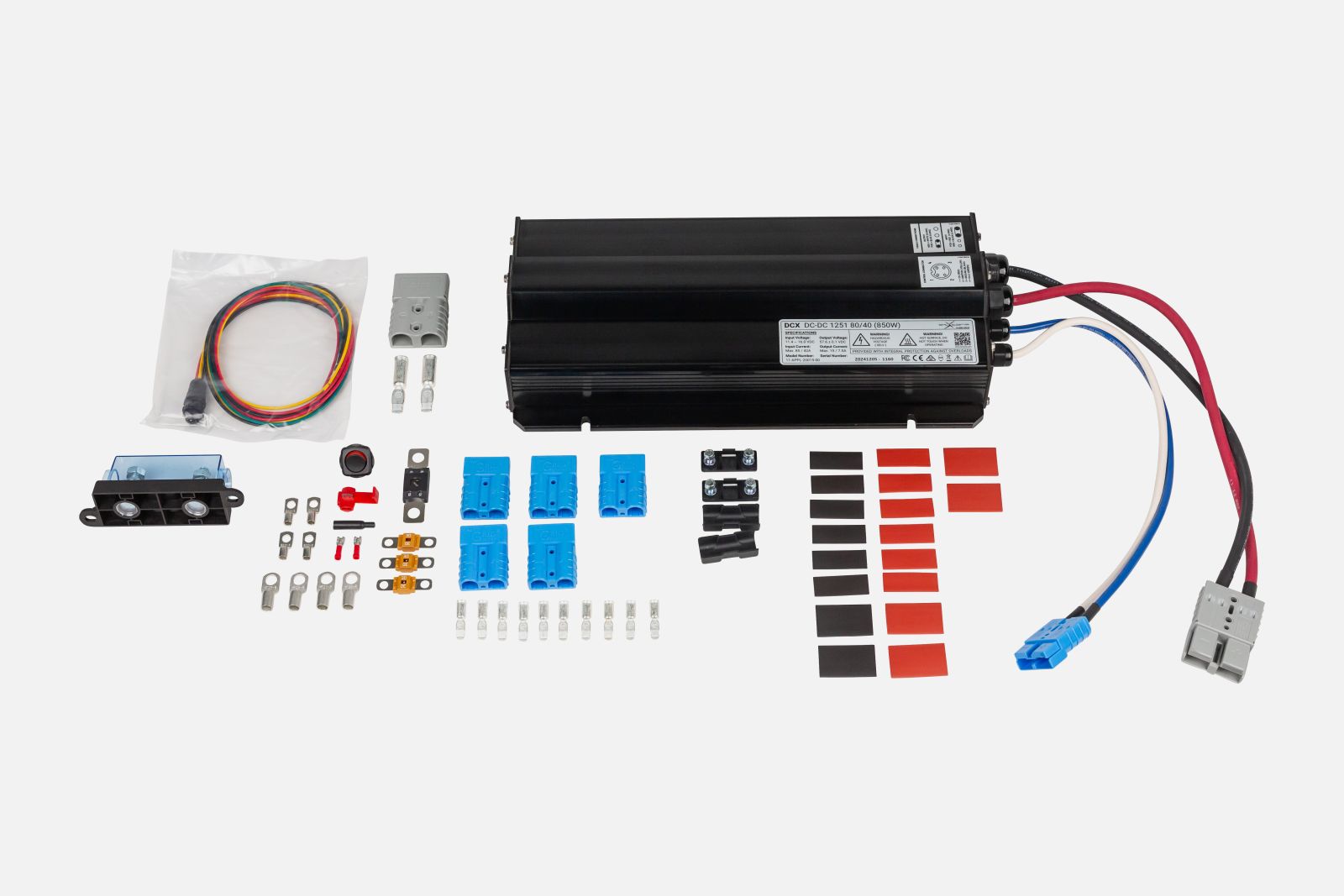

Kit contains, Midi Fuses (30A 58V), Mega Fuse (100A 58V), Anderson SB50 Blue, Anderson SB120 Grey, Output Switch, all ring terminals, weather resistant heat shrink, auxiliary connector with fly lead.
This charger connects to your tow vehicle’s battery, to ensure safe operation, all installation work should be carried out by a qualified auto electrician.
A practical choice for touring rigs and RV power systems that need efficient, weather-sealed DC/DC charging you can rely on.
(DCXDCDC)
Key Features
| Description | QTY | Part Number | Image |
|---|---|---|---|
| 100A ANMZ Fuse, 58V UL Certified | 1 | ANMZ100 | |
| 12V Auxiliary Heat Shrink Caps, 3/16 | 1 | PD-CAP-3/16-0 | |
| 30A 58.0V Midi fuse (BF1) | 3 | 142.5631.5302 | |
| ANMZ Fuse holder, single, bolt on | 1 | ANMZ-H01 | |
| Bell Mouth Lug 10mm????®-M6 | 4 | B06-AMXX/6H10 | |
| DCDC Switchcraft EN3C4MX CONNECTOR LOOM | 1 | 11.000.429 | |
| Heatshrink 10 x 40mm, BLACK | 6 | WH5684 | |
| Heatshrink 10 x 40mm, RED | 6 | WH5694 | |
| Heatshrink 16 x 40mm, BLACK | 2 | WH5685 | |
| Heatshrink 16 x 40mm, RED | 4 | WH5695 | |
| Midi fuse holder | 2 | 04980921GXM5 | |
| Ring terminal 8-25, non isolated, crimp | 4 | PT4937 | |
| SB120 Grey with 2x Crimp terminal (4 AWG) | 1 | YZW0001804 | |
| SB50 Blue with 2x Crimp terminal (8 AWG) | 5 | YZW0001805 | |
| Spade terminals | 2 | PT4524 | |
| Underpower Alternator switch | 1 | R13-135A2-02 | |
| TOTAL | 48 |
| SKU | DCXDCDC |
| Brand | OzXCorp |
| Shipping Weight | 9.0000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.100m |
| Shipping Length | 0.550m |
| Shipping Cubic | 0.016500000m3 |
| Unit Of Measure | mm |
